Build webhook consumers to subscribe to events

Configure new webhook consumers in Codat and manage existing configuration to receive webhook events

Overview

A webhook consumer is your implementation of a POST endpoint that you built to receive Codat's webhooks. In general, you need one consumer per event type.

This consumer must return a 2XX (status code 200-299) response within 15 seconds of receiving the POST request. We recommend passing the event to an internal message queue so that you can process it in time.

Configure webhook consumer

Once you have built your webhook consumer, configure Codat to send events to this consumer. Navigate to Settings > Webhooks > Events > Configure consumer and click Add endpoint to create a new consumer.

Building architectures with many consumers

If you are planning to create an application with more than 50 consumers, reach out to your Codat contact so that we can optimize the solution for your use case.

Add the endpoint URL that you want to receive the messages, an optional description, and choose the events that this endpoint should listen to. You must specify a least one event type per endpoint.

Browse our event catalog in the Portal or in our documentation to choose the event types that suit your use case.

Configure a consumer via the API

You can create a webhook consumer programmatically using our Create webhook endpoint.

IP allowlist

If your consumer endpoint is behind a firewall or NAT, you'll need to allow-list IP addresses 4.159.114.108 and 20.117.190.191.

Custom headers

Once you created your webhook consumer, you can use its advanced functionality to add a custom header to the endpoint. This can be useful in the following scenarios:

If you are securing your webhook endpoints with an authorization header, you can add it as a custom Authorization header.

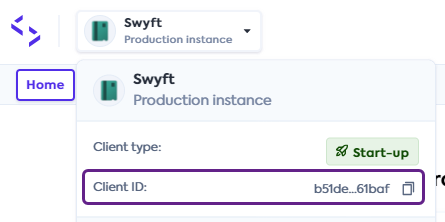

If you are using multiple Codat instances and need to differentiate between them, add a X-Codat-ClientId header with the required client ID. You can find and copy your client ID in the Portal by clicking on your instance dropdown.

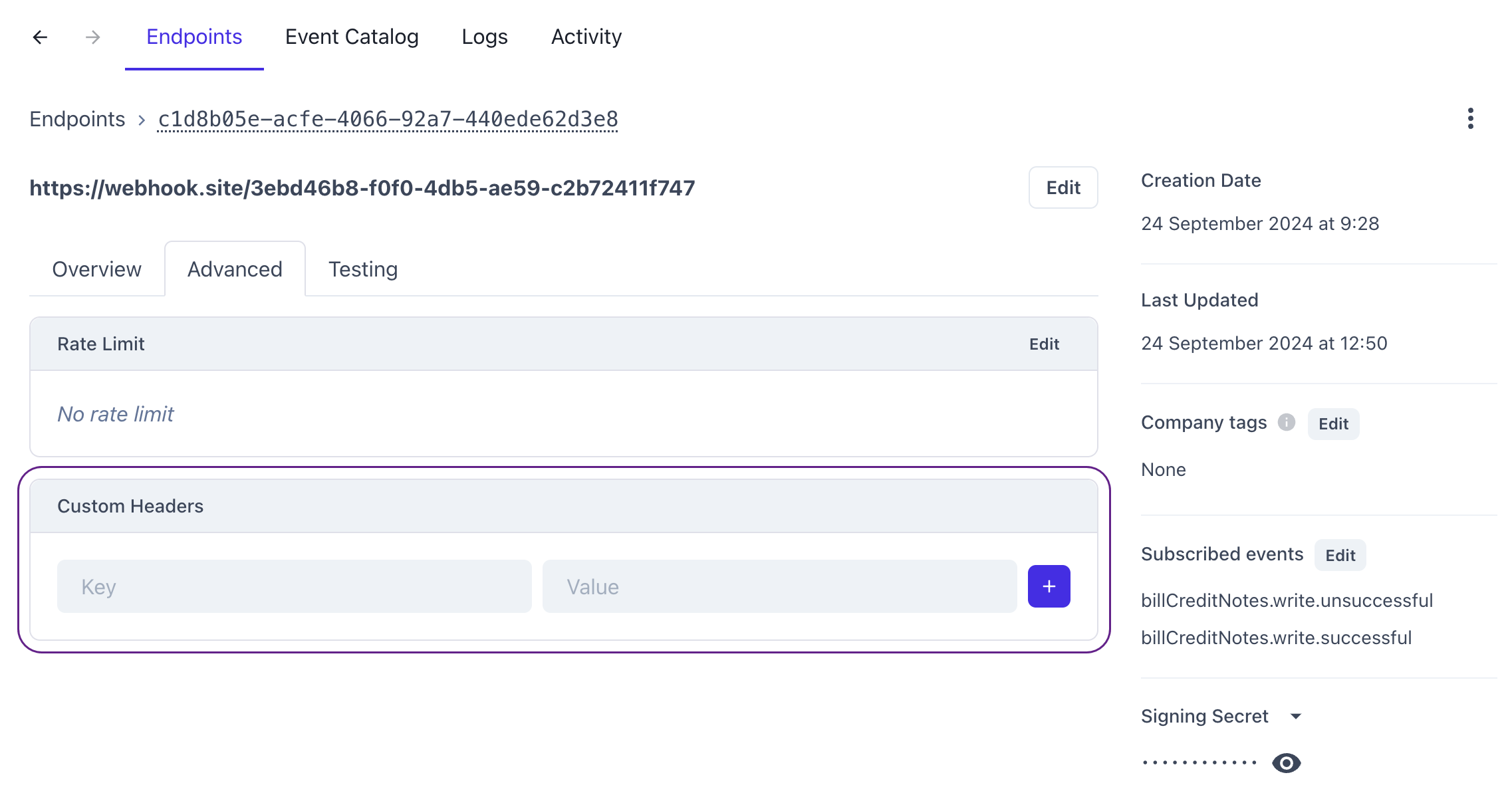

It's not possible to add a custom header via our API. Instead, navigate to Monitor > Webhooks > Events and click on the relevant endpoint to see its detailed view. Then, select the Advanced tab and add your headers to the custom header section.

A fragment of the webhook UI that displays the detailed endpoint view with two custom headers added to it

Filter webhooks by company tags

You can configure a webhook consumer to filter companies based on tags you can add to a company profile. For example, if you want to receive webhooks only for companies tagged with a specific region or service, you can configure the consumer to match those tags.

To set this up in the Codat Portal, navigate to Monitor > Webhooks > Events and select the relevant endpoint to view its details. Then, enter the tags you want to filter by in the Company tags field. Each webhook consumer can support up to 10 company tags.

Tags must be formatted as key-value pairs separated by a colon. For example, to route webhooks for companies tagged with a region value of us, set the Company tags field to region:us. Any company tagged with a region value of uk will be ignored.

A message will be delivered every time any of the company’s tags match the tags specified in the webhook consumer. For example, a consumer configured with region:us and service:t2k will still receive messages from a company tagged with region:us and service:minerva because one company tag matches.

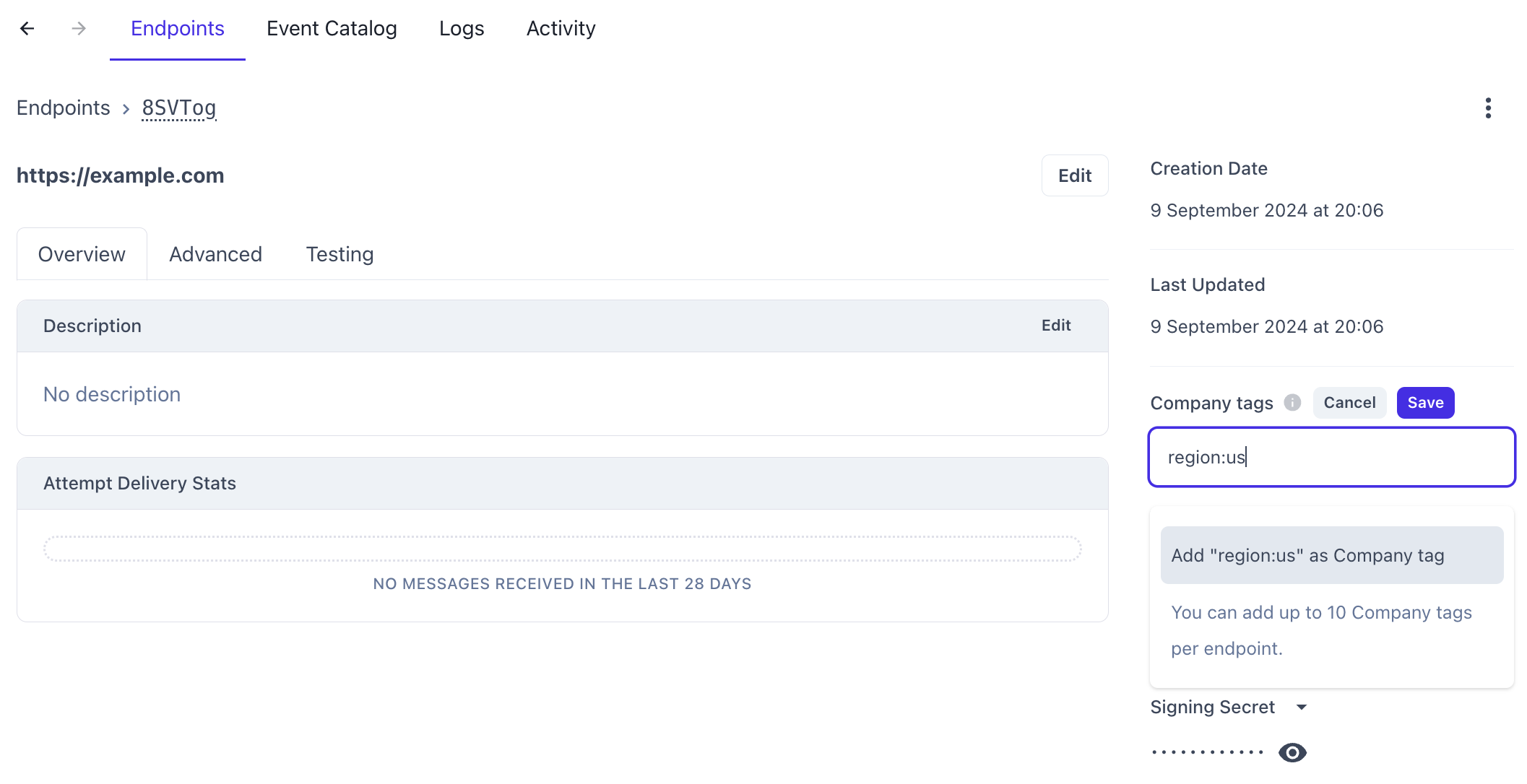

A fragment of the webhook UI that allows you to add company tags to a consumer

Endpoint rate limits

If your application can only handle a limited number of requests in a given time period, set a rate limit on the consumer endpoint to protect it from overloading. The rate limit is defined as a maximum number of messages per second to send to that endpoint.

After the limit is reached, the frequency of requests will be reduced not to exceed it. The actual rate of messages can sometimes be slightly above the enforced rate limit.

View webhook consumers

In the Codat Portal, navigate to Monitor > Webhooks > Events to see the list of all consumer endpoints you have configured.

Alternatively, you can use the List webhooks endpoint to return a list of all consumers that currently exist for your client.

Delete webhook consumers

In the Codat Portal, navigate to Monitor > Webhooks > Events to see the list of your webhook consumers. Click on the one you want to delete, then click on the triple-dot options menu and choose Delete.

Alternatively, you can use the Delete webhook endpoint to delete an existing webhook consumer. You need to provide its valid webhookId as a parameter.

Test a webhook consumer

When adding a webhook consumer endpoint, you may want to test it with an example event to confirm its configuration. Once you have created the endpoint, click on it to see the detailed view, and navigate to the Testing tab.

Next, choose the example event you want to send and click Send example. Once it's sent, you can click into the message to view its payload, attempts, and status.

Troubleshoot failed messages

There are many reasons a message to your endpoint could fail. Have a look at our troubleshooting guide to resolve the most common issues that occur.

Webhook security

Codat provides multiple options to secure your webhook consumers and ensure that only authorized systems receive and process webhook events securely. You can use:

Custom headers to authenticate access to your consumer by including the Authorization header in the request.
mutual TLS (mTLS) to verify both the server and client identities.
Webhook signatures to verify that webhook messages were genuinely sent by Codat.

Configure mutual TLS

Prerequisites

To configure mTLS in the Codat Portal, you need a PEM-encoded private key and an X.509 certificate.

Mutual TLS (mTLS) is an authentication protocol that ensures both the client and server verify each other’s identities before establishing a secure connection. Unlike standard TLS, which only authenticates the server, mTLS uses client certificates to enforce two-way authentication.

Follow the steps below to configure mTLS for a webhook consumer in Codat:

Navigate to Monitor > Webhooks > Events in the Codat Portal to view your webhook consumers.
Select the webhook consumer you want to configure mTLS for.

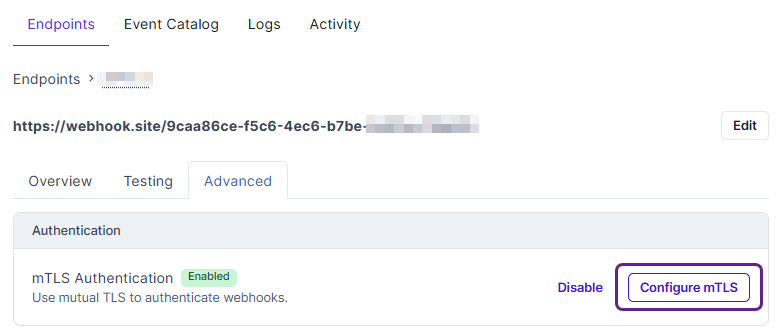

In the detailed endpoint view, click Advanced, then Configure mTLS.

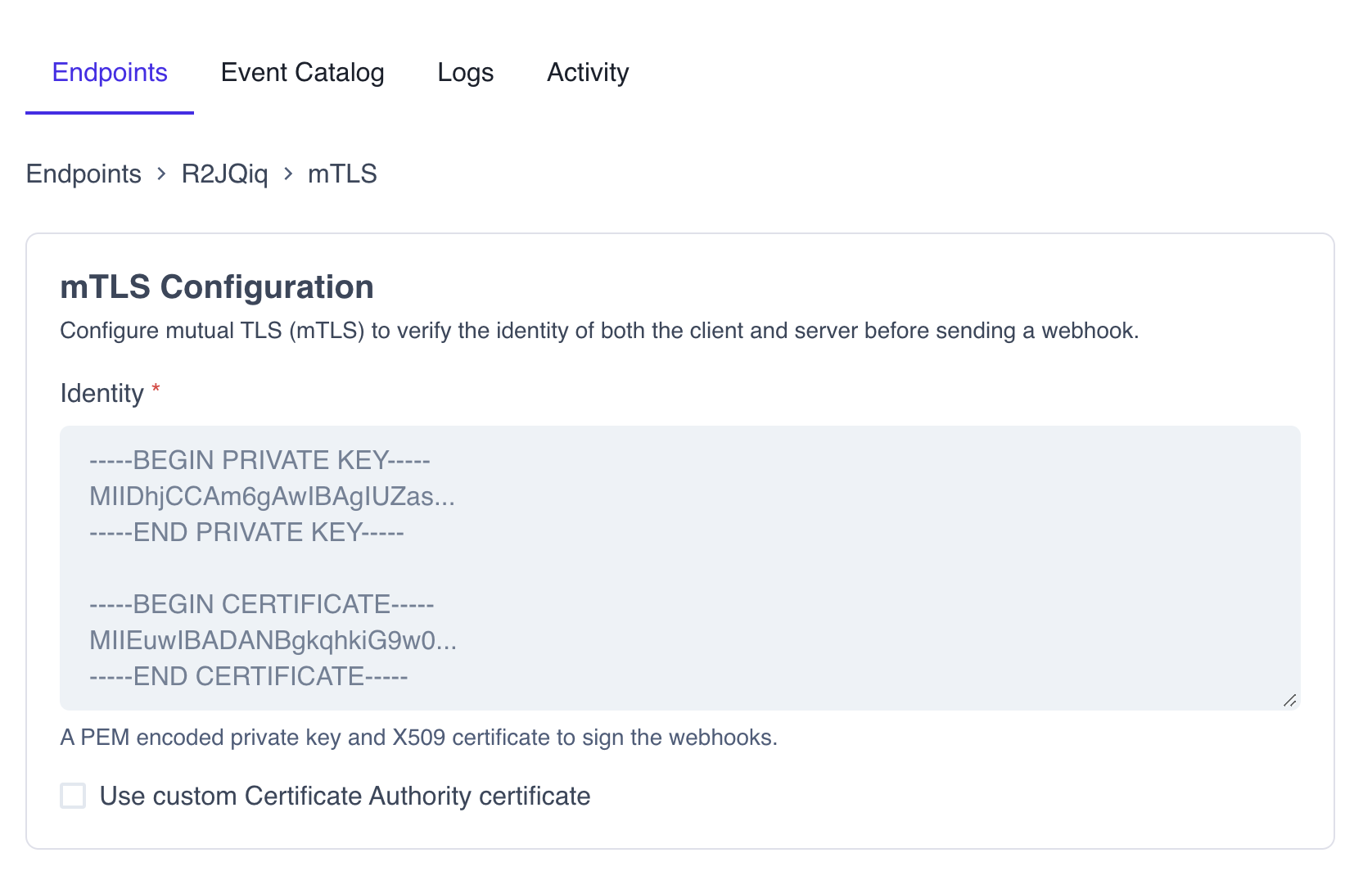

In the displayed text box, enter your PEM-encoded private key and the X.509 certificate, separating them by a blank line.
Click Save to apply the configuration.

Verify webhook signature

A webhook signature is your way to verify that the messages are sent by Codat and helps you avoid impersonation or replay attacks. We sign every webhook and its metadata with a unique security key for each endpoint and include timestamps for when the message attempt occurred.

You can use this signature to verify that the message truly came from Codat before processing it. To do the verification, we suggest using a library called Svix.

Install library

NPM

npm install svix

Yarn

yarn add svix

pip install svix

dotnet add package Svix

go get github.com/svix/svix-webhooks/go

Gradle

Add this dependency to your project's build file:

implementation "com.svix:svix:0.x.y"

Maven

Add this dependency to your project's POM:

<dependency>
  <groupId>com.svix</groupId>
  <artifactId>svix</artifactId>
  <version>0.x.y</version>
</dependency>

svix = "0"

Gradle

Add this dependency to your project's build file:

implementation "com.svix.kotlin:svix-kotlin:0.x.y"

Maven

Add this dependency to your project's POM:

<dependency>
  <groupId>com.svix.kotlin</groupId>
  <artifactId>svix-kotlin</artifactId>
  <version>0.x.y</version>
</dependency>

gem install svix

composer require svix/svix

Homebrew

brew install svix/svix/svix

Scoop

scoop bucket add svix https://github.com/svix/scoop-svix.git
scoop install svix

Verify webhook

To verify incoming webhooks, retrieve the secret key for your endpoint first.

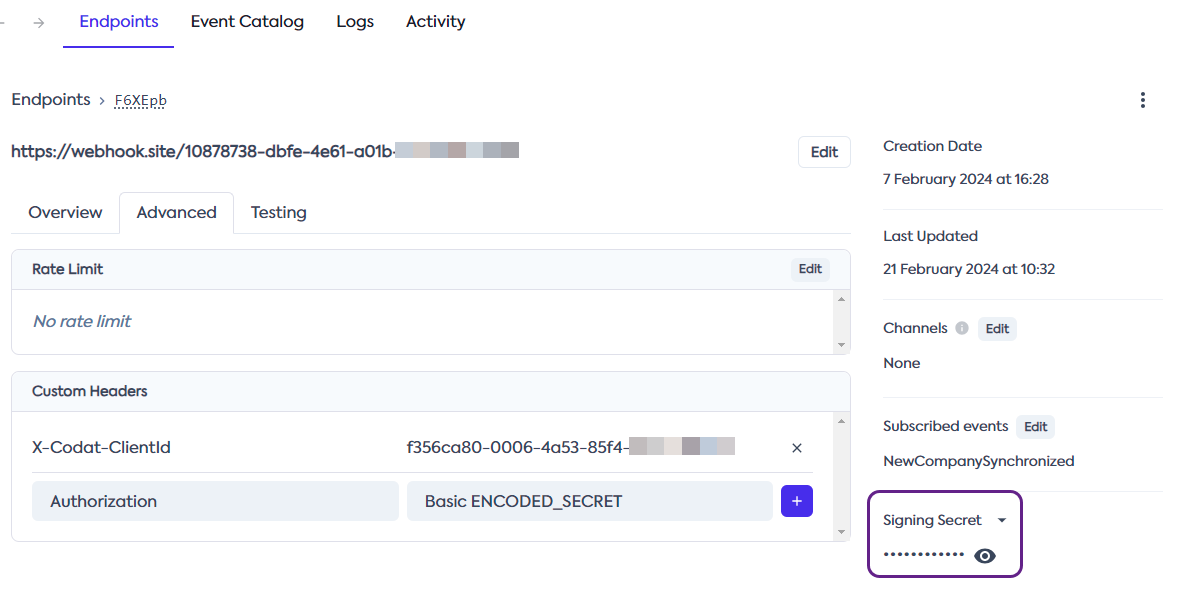

In the Codat Portal, navigate to Monitor > Webhooks > Events, click the endpoint you want to verify, and copy the Signing secret from the endpoint's detailed view.

A fragment of the UI that highlights where to copy the signing secret

Next, you need to pass the secret key, request body, and headers to the verification library as demonstrated below.

Use the raw request body

You need to use the raw request body when verifying webhooks because the cryptographic signature is very sensitive to changes.

Watch out for frameworks that parse the request as JSON and then stringify it, because this will also break the signature verification.

import { Webhook } from "svix";

const secret = "whsec_MfKQ9r8GKYqrTwjUPD8ILPZIo2LaLaSw";

// These were all sent from the server
const headers = {
  "webhook-id": "msg_p5jXN8AQM9LWM0D4loKWxJek",
  "webhook-timestamp": "1614265330",
  "webhook-signature": "v1,g0hM9SsE+OTPJTGt/tmIKtSyZlE3uFJELVlNIOLJ1OE=",
};
const payload = '{"test": 2432232314}';

const wh = new Webhook(secret);
// Throws on error, returns the verified content on success
const payloadAfterVerification = wh.verify(payload, headers);

from svix.webhooks import Webhook

secret = "whsec_MfKQ9r8GKYqrTwjUPD8ILPZIo2LaLaSw"

# These were all sent from the server
headers = {
  "webhook-id": "msg_p5jXN8AQM9LWM0D4loKWxJek",
  "webhook-timestamp": "1614265330",
  "webhook-signature": "v1,g0hM9SsE+OTPJTGt/tmIKtSyZlE3uFJELVlNIOLJ1OE=",
}
payload = '{"test": 2432232314}'

wh = Webhook(secret)
# Throws on error, returns the verified content on success
payload = wh.verify(payload, headers)

using Svix;
using System.Net;

// These were all sent from the server
var headers = new WebHeaderCollection();
headers.Set("webhook-id", "msg_p5jXN8AQM9LWM0D4loKWxJek");
headers.Set("webhook-timestamp", "1614265330");
headers.Set("webhook-signature", "v1,g0hM9SsE+OTPJTGt/tmIKtSyZlE3uFJELVlNIOLJ1OE=");
var payload = "{\"test\": 2432232314}";

var wh = new Webhook("whsec_MfKQ9r8GKYqrTwjUPD8ILPZIo2LaLaSw/Je4ZJEGP1QFb");

// Throws on error
wh.Verify(payload, headers);

import (
    svix "github.com/svix/svix-webhooks/go"
)

secret := "whsec_MfKQ9r8GKYqrTwjUPD8ILPZIo2LaLaSw"

// These were all sent from the server
headers := http.Header{}
headers.Set("webhook-id", "msg_p5jXN8AQM9LWM0D4loKWxJek")
headers.Set("webhook-timestamp", "1614265330")
headers.Set("webhook-signature", "v1,g0hM9SsE+OTPJTGt/tmIKtSyZlE3uFJELVlNIOLJ1OE=")

payload := []byte(`{"test": 2432232314}`)

wh, err := svix.NewWebhook(secret)
err := wh.Verify(payload, headers)
// returns nil on success, error otherwise

import com.svix.Webhook;

String secret = "whsec_MfKQ9r8GKYqrTwjUPD8ILPZIo2LaLaSw";

// These were all sent from the server
HashMap<String, List<String>> headerMap = new HashMap<String, List<String>>();
headerMap.put("webhook-id", Arrays.asList("msg_p5jXN8AQM9LWM0D4loKWxJek"));
headerMap.put("webhook-timestamp", Arrays.asList("1614265330"));
headerMap.put("webhook-signature", Arrays.asList("v1,g0hM9SsE+OTPJTGt/tmIKtSyZlE3uFJELVlNIOLJ1OE="));
HttpHeaders headers = HttpHeaders.of(headerMap, BiPredicate<String, String>)

String payload = "{\"test\": 2432232314}";

Webhook webhook = new Webhook(secret);

webhook.verify(payload, headers)
// throws WebhookVerificationError exception on failure.

use svix::webhooks::Webhook;

let secret = "whsec_MfKQ9r8GKYqrTwjUPD8ILPZIo2LaLaSw".to_string();

let mut headers = http::header::HeaderMap::new();
headers.insert("webhook-id", "msg_p5jXN8AQM9LWM0D4loKWxJek");
headers.insert("webhook-timestamp", "1614265330");
headers.insert(
    "webhook-signature",
    "v1,g0hM9SsE+OTPJTGt/tmIKtSyZlE3uFJELVlNIOLJ1OE=",
);

let payload = b"{\"test\": 2432232314}";

let wh = Webhook::new(&secret)?;
wh.verify(&payload, &headers)?;
// returns Ok on success, Err otherwise

import com.svix.kotlin.Webhook

val secret = "whsec_MfKQ9r8GKYqrTwjUPD8ILPZIo2LaLaSw";

// These were all sent from the server
val headersMap = mapOf(
    "webhook-id" to listOf("msg_p5jXN8AQM9LWM0D4loKWxJek"),
    "webhook-timestamp" to listOf("1614265330"),
    "webhook-signature" to listOf("v1,g0hM9SsE+OTPJTGt/tmIKtSyZlE3uFJELVlNIOLJ1OE=")
)
val headers = HttpHeaders.of(headersMap) { _, _ -> true }

val payload = "{\"test\": 2432232314}";

val webhook = Webhook(secret);

webhook.verify(payload, headers)
// throws WebhookVerificationError exception on failure.

require 'svix'

# These were all sent from the server
headers = {
  "webhook-id" => "msg_p5jXN8AQM9LWM0D4loKWxJek",
  "webhook-timestamp" => "1614265330",
  "webhook-signature" => "v1,g0hM9SsE+OTPJTGt/tmIKtSyZlE3uFJELVlNIOLJ1OE="
}
payload = '{"test": 2432232314}'

wh = Svix::Webhook.new("whsec_MfKQ9r8GKYqrTwjUPD8ILPZIo2LaLaSw")
# Raises on error, returns the verified content on success
json = wh.verify(payload, headers)

// import using composers autoload
require_once('vendor/autoload.php');
// or manually
require_once('/path/to/svix/php/init.php');

// These were all sent from the server
$payload = '{"test": 2432232314}';
$header = array(
        'webhook-id'  => 'msg_p5jXN8AQM9LWM0D4loKWxJek',
        'webhook-timestamp' => '1614265330',
        'webhook-signature' => 'v1,g0hM9SsE+OTPJTGt/tmIKtSyZlE3uFJELVlNIOLJ1OE=',
    );

// Throws on error, returns the verified content on success
$wh = new \Svix\Webhook('whsec_MfKQ9r8GKYqrTwjUPD8ILPZIo2LaLaSw');
$json = $wh->verify($payload, $header);

export SVIX_AUTH_TOKEN="AUTH_TOKEN"
svix verify --secret whsec_MfKQ9r8GKYqrTwjUPD8ILPZIo2LaLaSw --msg-id msg_p5jXN8AQM9LWM0D4loKWxJek --timestamp 1614265330 --signature v1,g0hM9SsE+OTPJTGt/tmIKtSyZlE3uFJELVlNIOLJ1OE= '{"test": 2432232314}'

Transform webhook properties

You may want to modify a webhook's properties (e.g. HTTP method, target URL, and message schema) before it is sent to your application to better fit your needs. To do so, you can now apply a transformation to the webhook following these steps:

Go to Monitor > Webhooks > Events in the Codat Portal.
Select the endpoint where you want to apply a transformation.

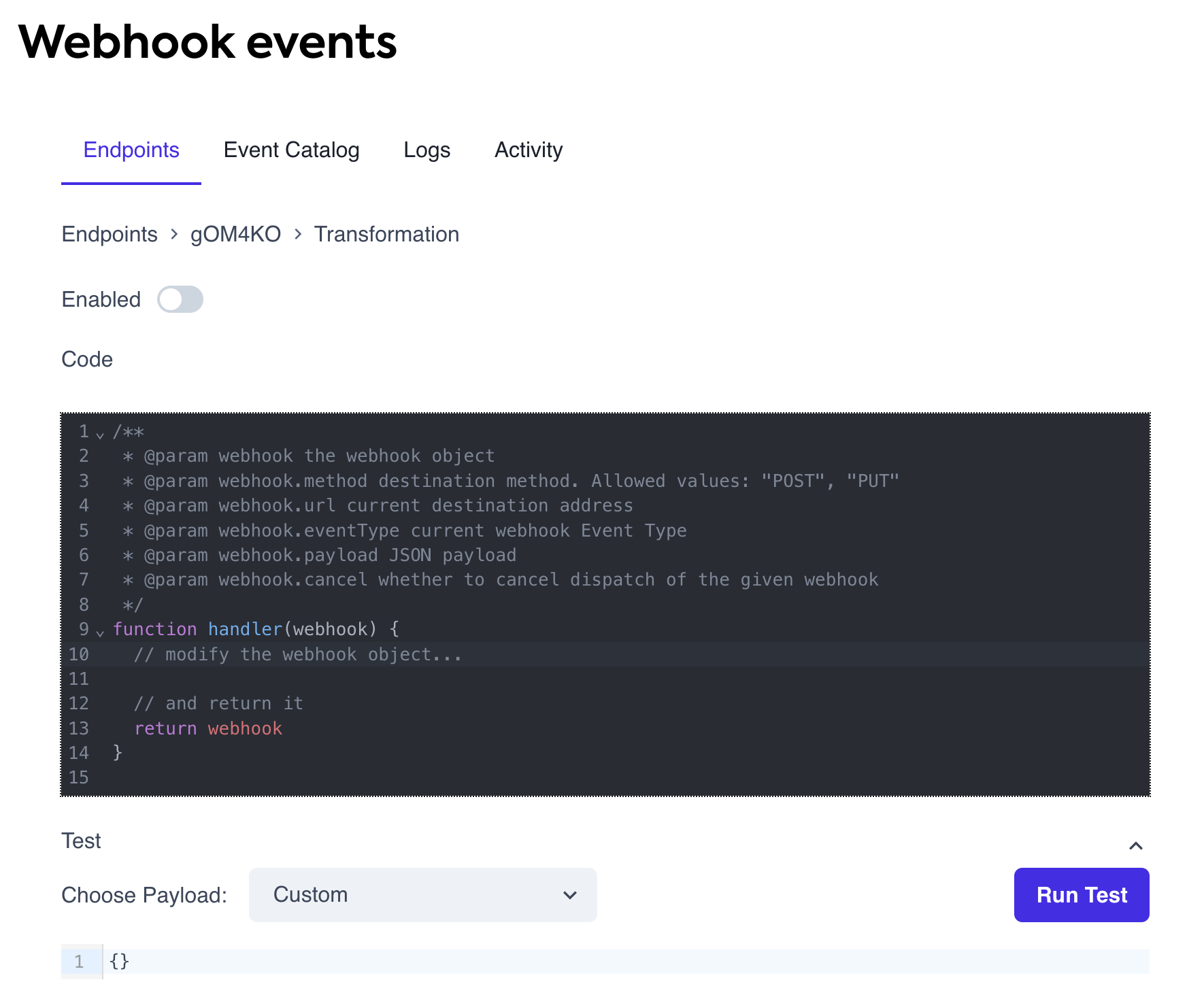

In the detailed endpoint view, click Advanced, then Edit transformations.
In the displayed code block, add changes to the webhook properties as required, returning the webhook object at the end.
Click Save and toggle the Enabled flag to apply the transformation.

Webhook object properties

The following are the properties of the webhook object that you can transform to fit your needs:

Property	Type	Description
`method`	string	The HTTP method used to communicate with your application. Codat supports only `POST` (default) or `PUT` methods.
`url`	string	The endpoint URL where the message will be sent.
`payload`	object	A JSON object representing the full webhook event schema. This is the complete event schema for each event type, not just the `payload` component of Codat’s schemas. You can modify it as needed.
`cancel`	bool	Determines whether to cancel the webhook dispatch. Defaults to `false`. Canceled messages appear as successful dispatches in logs.

Example: cancel requests using company tags

You may want to prevent webhook notifications for specific groups of companies due to compliance reasons or business rules. Using company tags, you can tag companies and cancel webhook events for those with a specific tag using transformations.

In this example, webhooks are canceled for companies with the tag us-compliant set to true.

function handler(webhook) {
  if (webhook.payload.payload.referenceCompany.tags === undefined) {
    return webhook;
  }

  if (
    webhook.payload.payload.referenceCompany.tags["us-compliant"] === "true"
  ) {
    webhook.cancel = true;
  }

  // and return it
  return webhook;
}

Build webhook consumers to subscribe to events

Overview

Configure webhook consumer

Custom headers

Filter webhooks by company tags

Endpoint rate limits

View webhook consumers

Delete webhook consumers

Test a webhook consumer

Webhook security

Configure mutual TLS

Verify webhook signature

Install library

NPM

Yarn

Gradle

Maven

Gradle

Maven

Homebrew

Scoop

Verify webhook

Transform webhook properties

Webhook object properties

Example: cancel requests using company tags

Read next

Contents

Overview​

Configure webhookWebhook An automated notification sent from Codat to your application when specific events occur, such as when data syncs complete or connections change status. consumer​

Custom headers​

Endpoint rate limits​

View webhookWebhook An automated notification sent from Codat to your application when specific events occur, such as when data syncs complete or connections change status. consumers​

Delete webhookWebhook An automated notification sent from Codat to your application when specific events occur, such as when data syncs complete or connections change status. consumers​

Test a webhookWebhook An automated notification sent from Codat to your application when specific events occur, such as when data syncs complete or connections change status. consumer​

WebhookWebhook An automated notification sent from Codat to your application when specific events occur, such as when data syncs complete or connections change status. security​

Configure mutual TLS​

Verify webhookWebhook An automated notification sent from Codat to your application when specific events occur, such as when data syncs complete or connections change status. signature​

Install library​

NPM​

Yarn​

Gradle​

Maven​

Gradle​

Maven​

Homebrew​

Scoop​

Verify webhookWebhook An automated notification sent from Codat to your application when specific events occur, such as when data syncs complete or connections change status.​

Transform webhookWebhook An automated notification sent from Codat to your application when specific events occur, such as when data syncs complete or connections change status. properties​

WebhookWebhook An automated notification sent from Codat to your application when specific events occur, such as when data syncs complete or connections change status. object properties​

Example: cancel requests using companyCompany In Codat, a company represents your customer's business entity. Companies can have multiple connections to different data sources. tags​

Read next​

Contents

Overview

Configure webhook consumer

Custom headers

Endpoint rate limits

View webhook consumers

Delete webhook consumers

Test a webhook consumer

Webhook security

Configure mutual TLS

Verify webhook signature

Install library

NPM

Yarn

Gradle

Maven

Gradle

Maven

Homebrew

Scoop

Verify webhook

Transform webhook properties

Webhook object properties

Example: cancel requests using company tags

Read next
